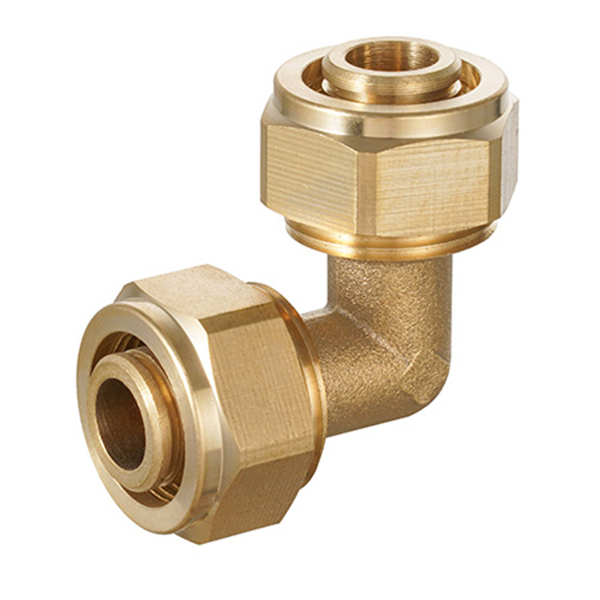

Equal Elbow CxC

Equal Elbow CxC

Applications

Brass compression fittings for PEX pipe are well designed and suitable for using in plumbing systems. They are used in plumbing for water supply and distribution, hot water feeding for radiators and underfloor heating. They are easily installed and disassembled. Our brass compression fittings for PEX are available in sizes from 16 to 25.

The sizes are identified in inches are for the threaded end according to ISO 228 standard, and in millimeters are for the coupling end in reference to the outer diameter and thickness of the corresponding PEX pipe according to EN 1254-3 standard.


Technical Data

1. Nut: brass by hot forging, CW617N

2. Lock ring: brass MS58

3. Body: brass by hot forging, CW617N

4. Manufactured according to EN 1254-3 standard

5. Fastening thread according to ISO 228 standard


Specifications

Model

Size

ZR-PEE15

15x15   (2.5)

ZR-PEE18

18x18 (2.5)

ZR-PEE22

22x22   (3.0)

ZR-PEE25

25x25 (2.3)
