Applications

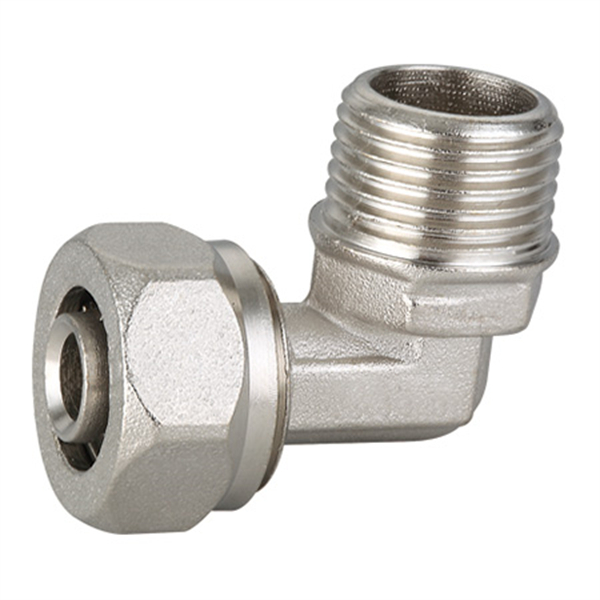

Brass compression fittings for multilayer pipe (PEX-AL-PEX pipe) are well designed and suitable for using in multilayer plumbing systems. They are used in plumbing for water supply and distribution, hot water feeding for radiators and underfloor heating. They are easily installed and disassembled. Our brass compression fittings for multilayer pipe (PEX-AL-PEX pipe) are available in sizes from 16 to 32.
The sizes are identified in inches are for the threaded end, and in millimeters are for the coupling end in reference to the outer diameter and thickness of the multilayer pipe.
Technical Data
1. Nut: brass nickel plated by hot forging, CW617N
2. Lock ring: brass nickel plated, MS58
3. O-ring: EPDM
4. Body: brass nickel plated by hot forging, CW617N
5. Manufactured according to EN 1254-3 standard
6. Fastening thread according to ISO 228 standard
Specifications
Model | Size |
ZR-ME1612M | 16x1/2”M |
ZR-ME2012M | 20x1/2”M |
ZR-ME2034M | 20x3/4”M |
ZR-ME2534M | 25x3/4”M |
ZR-ME251M | 25x1”M |
ZR-ME321M | 32x1”M |
