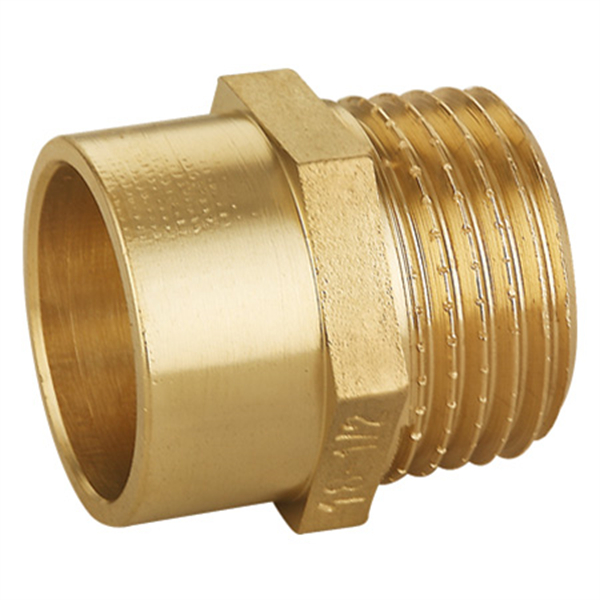

Male Straight Coupler CxMale

Applications:

Brass end feed fittings are used in applications such as supply of water, distribution of sanitary water, radiator heating installations and conveyance of other fluids compatible with copper tube. They are designed for connecting copper tubes in accordance with EN 1057 standard. Brass end feed fittings are made according to EN 1254-1 standard. The fastening thread accessories is according to ISO 228 standard.

Technical Data

1. Body: Brass by hot forging, CW617N

2. Manufactured according to EN 1254-1

3. Fastening thread according to ISO 228

Specifications

Model	Size
ZR-SC1238M	12x3/8”
ZR-SC1212M	12x1/2”
ZR-SC1538M	15x3/8”
ZR-SC1512M	15x1/2”
ZR-SC1534M	15x3/4”
ZR-SC2212M	22x1/2”
ZR-SC2234M	22x3/4”
ZR-SC221M	22x1”
ZR-SC2834M	28x3/4”
ZR-SC281M	28x1”
ZR-SC28114M	28x1-1/4”
ZR-SC351M	35x1”
ZR-SC35114M	35x1-1/4”
ZR-SC42112M	42x1-1/2”
ZR-SC542M	54x2”
