Applications
Brass compression fittings are mainly used for hot and cold water services and hearting installations. They are mechanically joining copper tubes by means of compressing a brass ring onto the copper tube without the application of beat. They are designed for EN 1057 copper tubes for water and gas purposes. Brass compression fittings are made according to EN 1254-2 standard.
Pressures and Temperatures
Medium | Service Temperature up to | Maximum Working Pressure | |
bar | psi | ||
Water or light mineral oils 10mm – 54mm | 30℃ | 16 | 232 |
65℃ | 10 | 145 | |
110℃ | 6 | 87 | |
120℃ | 5 | 73 | |
Saturated steam | 120℃ | 3 | 44 |
LPG & Natural gas 10mm – 28mm | 30℃ | 1 | 15 |

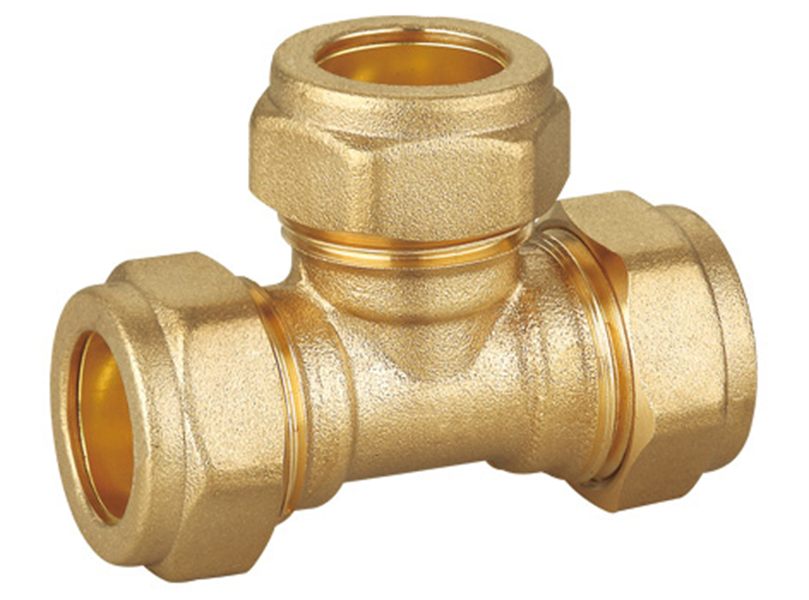

Structure and Material:
1. Body: Brass by hot forging, CW617N
2. Ring: Copper and brass
3. Nut: Brass by hot forging, CW617N
4. Manufactured according to EN 1254-2
Specifications
Model | Size |
ZR-CT08 | 8 |
ZR-CT10 | 10 |
ZR-CT12 | 12 |
ZR-CT15 | 15 |
ZR-CT22 | 22 |
ZR-CT28 | 28 |
ZR-CT35 | 35 |
ZR-CT42 | 42 |
ZR-CT54 | 54 |
