Copper Capillary Tube for Refrigeration and Air Conditioning

Copper Capillary Tube for Refrigeration and Air Conditioning

Product Description

Copper capillary tube is one of the most commonly used throttling devices in the refrigeration and air conditioning systems (domestic refrigerators, deep freezers, water coolers and air conditioners). The copper capillary tube limits the maximum amount of the refrigerant that can be charged in the refrigeration and air conditioning system due to which the receiver is not required in these systems.

Copper capillary pipe is usually manufactured with fine precision. This precision allows airflow to be smoother, more uniform, and more closely monitored, making such applications as fluid & air restrictors much more useful.

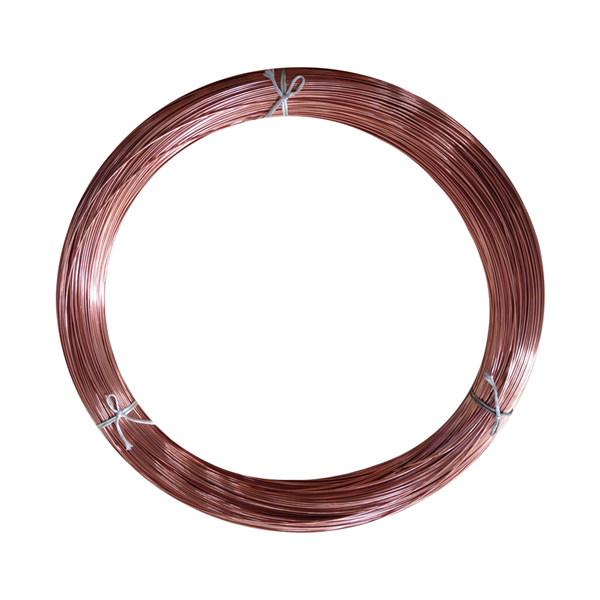

Copper capillary tubing is usually supplied in coils (level wound coil and pancake coil) and in annealed form. Our copper capillary tubing is available in outside diameter from 1.83mm to 6.1mm (from 0.072” to 0.240”)



Material

The copper tubes are made in compliance with UNS C12200 (Cu-DHP) alloy, with copper content more than 99.90% and with phosphorous range of 0.015% to 0.040%



Key Feature

Smoother, more uniform, and more closely monitored

With controlled inside diameter, higher cleanliness

Compatible for usage of R134a, R124a refrigerants

Manufactured as per ASTM B360 Standard, EN 12450 Standard

Temper available in soft annealed, hard drawn

With controlled air flow


Key Feature

Supplied in coil for soft annealed temper and straight length for hard drawn temper

Random bunch: 5-30kg

Large coil: 50-100 meters, Medium coil: 15-30 meters, mini coil: 3-10 meters



Technical Properties

Copper Alloy

Chemical Composition

Temper

Mechanical Property

Standard

Copper

%

Phosphorus

%

Tensile Strength

MPa

Elongation

%

C12200

≥ 99.90

0.015-0.040

O60

≥ 205

≥ 40

ASTM B360 & ASTM B68

C12200

≥ 99.90

0.015-0.040

O50

≥ 205

≥ 40

C12200

≥ 99.90

0.015-0.040

1/2 Hard

250-320

/

C12200

≥ 99.90

0.015-0.040

Hard

≥ 310

/

Cu-DHP

≥ 99.90

0.015-0.040

R240

≥240

≥15

EN 12450

Cu-DHP

≥ 99.90

0.015-0.040

R320

≥320

≥5

Cu-DHP

≥ 99.90

0.015-0.040

R395

395-515

/





Flow Requirement

Flow  l/min

tolerance on flow

Standard

over

up to and including

-

5

±0.3

EN 12450

5

9

±0.4

9

14

±0.6

14

20

±0.8


Specifications

ASTM B280 Standard

O.D.

I.D.

Wall Thickness

Weight    kg/m

inch

mm

inch

mm

inch

mm

0.072

1.83

0.028

0.711

0.022

0.558

0.0199

0.081

2.06

0.031

0.787

0.025

0.635

0.0254

0.081

2.06

0.033

0.838

0.024

0.606

0.0248

0.087

2.21

0.036

0.914

0.0255

0.648

0.0284

0.087

2.21

0.039

0.991

0.024

0.606

0.0239

0.093

2.36

0.042

1.07

0.0255

0.648

0.0312

0.097

2.47

0.046

1.17

0.0255

0.648

0.0331

0.099

2.51

0.049

1.24

0.025

0.635

0.0335

0.106

2.69

0.054

1.37

0.026

0.660

0.0377

0.112

2.84

0.059

1.50

0.0265

0.673

0.0411

0.125

3.18

0.064

1.63

0.0305

0.775

0.0522

0.125

3.18

0.070

1.78

0.0275

0.698

0.0486

0.125

3.18

0.075

1.91

0.025

0.635

0.0454

0.145

3.68

0.080

2.03

0.0325

0.826

0.0663

0.145

3.68

0.085

2.16

0.030

0.762

0.0625

0.145

3.68

0.090

2.29

0.0275

0.698

0.0586

0.160

4.06

0.100

2.54

0.030

0.762

0.0707

0.160

4.06

0.110

2.79

0.025

0.635

0.0611

0.188

4.78

0.120

3.03

0.034

0.864

0.0949

0.188

4.78

0.130

3.30

0.029

0.737

0.0836

0.200

5.08

0.145

3.68

0.0275

0.698

0.086

0.220

5.59

0.160

4.06

0.030

0.762

0.103

0.240

6.10

0.175

4.45

0.0325

0.826

0.121
