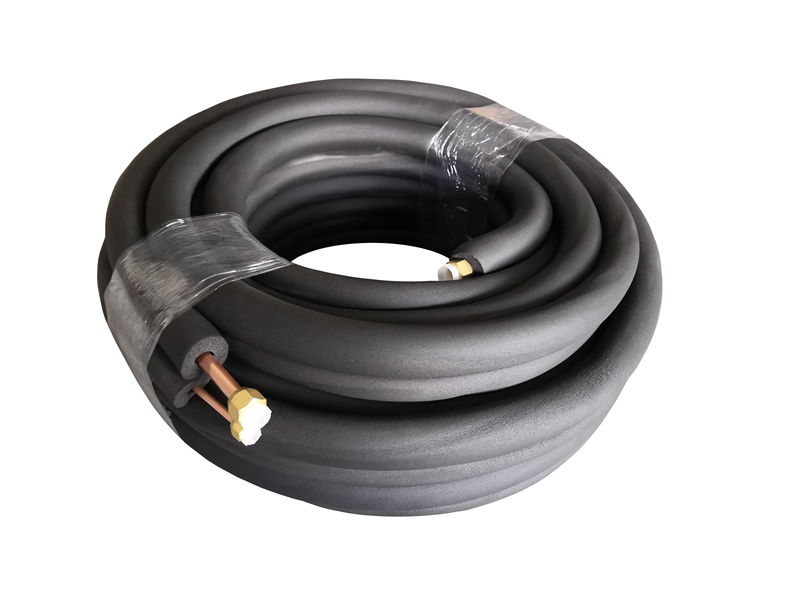

Flare End Refrigerant Copper Line Set

Flare End Refrigerant Copper Line Set

Applications

Flare end refrigerant copper line set is suitable for ductless mini-split air conditioner systems, VRF commercial air conditioner systems, AC & heat pump. The refrigerant copper line set is with flaring and nuts on each end of copper tubing for easy connection during installation. The copper tubing is in C12200 alloy, with copper content more than 99.90% and manufactured according to ASTM B280 standard. And the insulation tube conforms to ASTM E84 (25/50). Ink marking every foot in the insulation tube makes the size specification, standard and length distinguished easily. Our flare end refrigerant copper line set is available from 10 feet to 100 feet.

Material

Copper Tubing:

C12200 alloy, with copper content more than 99.90% and with phosphorous range of 0.015% to 0.040%, conforms to ASTM B280 standard. Copper tubing is fully annealed to the soft temper. All copper tube end flared and nut and sealed to keep inside clean and dry.

Polyethylene foam insulation tube:

Light weight and low-density cross-linked polyethylene foam, tear resistant, designed for insulating cooling and heating lines. Conforms to ASTM E84 (25/50), UL 723, UL 94 standard with thermal conductivity (K value) 0.263 Btuin/ft2hF (0.038 W/mK) at mean temperature 104°F (40°C)

Color: embossed White / embossed black / embossed grey

Thickness: 3/8”, 1/2”

Elastomeric insulation tube:

Flexible and closed cell elastomeric material designed for insulating cooling and heating lines. Conforms to ASTM C534, ASTM E84 (25/50) standard, with thermal conductivity (K value) 0.25Btuin/ft2hF (0.036 W/mK) at mean temperature 75°F (24°C)

Color: Black, Red, Blue, Green

Thickness: 3/8”, 1/2”

Nuts: 45° forged brass nuts


Key Feature

Professional copper tube manufacturer, fast production and delivery

CE certificate, ASTM B280 certificate, EN 12735-1 certificate, AS 1571 certificate for copper tubes

ASTM E84 (25/50) certificate, EN 13501 certificate, AS 1530.3 certificate for insulation pipe

100% pure copper, R410 & R32 grade copper tubing

45° forged brass nuts

Polyethylene foam insulation tube is UV resistant and anti-aging, fire resistant

Ink marking every foot in the insulation tube makes the size specification, standard and length distinguished easily

Each insulated copper tube flared and nut, individually sealed and packed by strong carton for maximum protection



Technical Properties

Copper Tubing

Copper Alloy

Chemical Composition

Temper

Mechanical Property

Hardness

HV

Standard

Copper

%

Phosphorus

%

Tensile Strength

MPa

Elongation

%

C12200

≥ 99.90

0.015-0.040

O60

≥ 205

≥ 40

/

ASTM B280

Polyethylene foam Insulation tube

Insulation   Type

Thermal   Conductivity

(104°F)

Water   Vapor Permeability

Tensile   Strength

Shrinkage

Fire   Proof Rating

R   Value

Polyethylene foam Insulation

 0.263 Btuin/ft2hF (0.038W/mK)

4x10-5

mg/h•m•Pa

≥0.34

MPa

≤7%

ASTM E84 (25/50)

UL 94

UL 723

3/8” Wall = R2

Elastomeric Insulation tube

Insulation   Type

Thermal   Conductivity

(75°F)

Water   Vapor Permeability

Tensile   Strength

Shrinkage

Fire   Proof Rating

R   Value

Elastomeric Insulation

 0.25 Btuin/ft2hF (0.036W/mK)

7.25x10-14

kg/s•m•Pa

≥0.025

MPa

≤10%

ASTM E84 (25/50)

BS   476-7 (Class 1)

3/8” Wall = R2.5


Specifications

ASTM B280 Standard

size

insulation inner diameter mm

copper tube size    inch

length

outside diameter

wall   thickness

Single   Coil 1/4”

8.0

1/4”

0.030”

from   10’ to 100’

Single   Coil 3/8”

12.0

3/8”

0.032”

from   10’ to 100’

Single   Coil 1/2”

14.0

1/2”

0.032”

from   10’ to 100’

Single   Coil 5/8”

18.0

5/8”

0.035”

from   10’ to 100’

Single   Coil 3/4”

22.0

3/4”

0.035”

from   10’ to 100’

Single   Coil 7/8”

25.0

7/8”

0.045”

from   10’ to 100’

Pair   Coil 1/4”+3/8”

8.0

1/4”

0.030”

from   10’ to 100’

12.0

3/8”

0.032”

Pair   Coil 1/4”+1/2”

8.0

1/4”

0.030”

from   10’ to 100’

14.0

1/2”

0.032”

Pair   Coil 1/4”+5/8”

8.0

1/4”

0.030”

from   10’ to 100’

18.0

5/8”

0.035”

Pair   Coil 3/8”+5/8”

12.0

3/8”

0.032”

from   10’ to 100’

18.0

5/8”

0.035”

Pair   Coil 3/8”+3/4”

12.0

3/8”

0.032”

from   10’ to 100’

22.0

3/4”

0.035”

Pair   Coil 1/2”+3/4”

14.0

1/2”

0.032”

from   10’ to 100’

22.0

3/4”

0.035”
