Insulated Corrugated Copper Tube with Spiral Waves

Applications

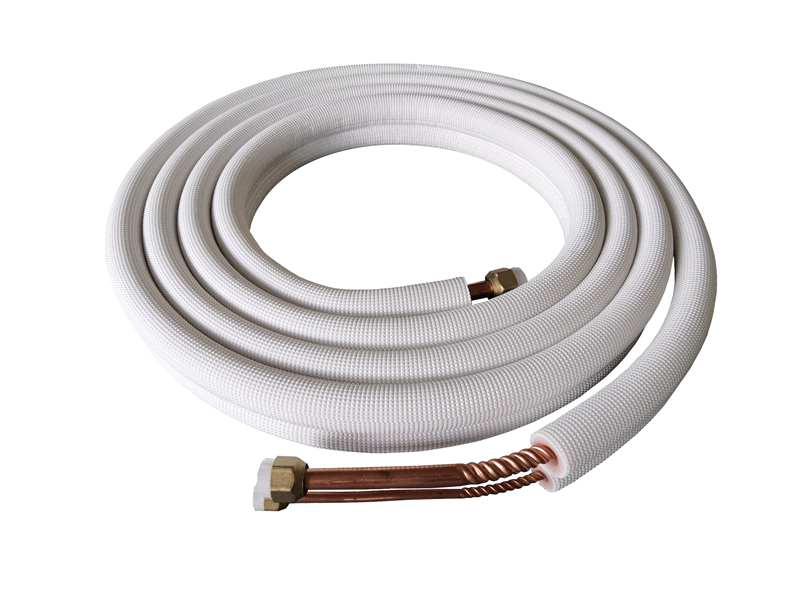

Insulated corrugated copper tube with spiral waves is suitable for ductless mini-split air conditioner systems and VRF commercial air conditioner systems. The spiral waves make copper tubing more flexible and very easy to bend during installation. The insulated corrugated copper tube is constructed of seamless soft copper tubing, insulation tube, spiral waves and flaring nuts. The insulated corrugated copper tube is available as single and pair (twin) copper coil. The spiral waves are on both sides of copper tubing, with length from 50cm to 150cm. And the copper tubing is flared and nut on each side of copper tube to make easy connection. The copper tube is manufactured according to ASTM B280 standard (EN 12735-1 standard). Ink marking every meter in the insulation tube makes the size specification, standard and length distinguished easily. Our insulated corrugated copper tube is available up to 15 meters.

Material

Copper Tube:

C12200 (Cu-DHP) alloy, with copper content more than 99.90% and with phosphorous range of 0.015% to 0.040%, conforms to ASTM B280, EN 12735-1, AS 1571, JIS H3300 standard. The copper tube is fully annealed to the soft temper. R410a & R32 grade.

Polyethylene foam insulation tube:

Light weight and low-density cross-linked polyethylene foam, tear resistant, designed for insulating cooling and heating lines. Conforms to ASTM E84 (25/50), UL 723, UL 94 standard, AS 1530.3 standard, EN 13501-1 standard with thermal conductivity (K value) 0.263 Btu•in/ft2•h•F (0.038 W/m•K) at mean temperature 104°F (40°C)

Color: embossed White / embossed black / embossed grey

Thickness: 3/8”, 1/2” (8mm, 9mm, 10mm, 13mm)

Elastomeric insulation tube:

Flexible and closed cell elastomeric material designed for insulating cooling and heating lines. Conforms to ASTM C534, ASTM E84 (25/50) standard, with thermal conductivity (K value) 0.25Btu•in/ft2•h•F (0.036 W/m•K) at mean temperature 75°F (24°C)

Color: Black, Red, Blue, Green

Thickness: 1/4”, 3/8”, 1/2” (6mm, 9mm, 10mm, 13mm)

Spiral wave:

With length from 50cm to 150cm on both sides of copper tube

Nuts:

45° Forged brass nuts

Key Feature

Professional copper tube manufacturer, fast production and delivery

100% pure copper, R410 & R32 grade copper tubing

CE certificate, ASTM B280 certificate, EN 12735-1 certificate, AS 1571 certificate for copper tubes

ASTM E84 (25/50) certificate, EN 13501 certificate, AS 1530.3 certificate for insulation pipe

45° forged brass nuts

Flexible spiral wave from 50cm to 150cm

Polyethylene foam insulation tube is UV resistant and anti-aging

Ink marking every meter or every foot in the insulation tube makes the size specification, standard and length distinguished easily

Each insulated copper tube flared and nut, individually sealed and packed by strong carton for maximum protection

Technical Properties

Copper Tubing

Copper Alloy	Chemical Composition		Temper	Mechanical Property		Hardness HV	Standard
	Copper %	Phosphorus %		Tensile Strength MPa	Elongation %
C12200	≥ 99.90	0.015-0.040	O60	≥ 205	≥ 40	/	ASTM B280
Cu-DHP	≥ 99.90	0.015-0.040	R220	≥ 220	≥ 40	40-70	EN 12735-1

Polyethylene foam Insulation tube

Insulation   Type	Thermal   Conductivity (104°F)	Water   Vapor Permeability	Tensile   Strength	Shrinkage	Fire   Proof Rating	R Value
Polyethylene foam Insulation	0.263 Btu•in/ft2•h•F (0.038W/m•K)	4x10-5 mg/h•m•Pa	≥0.34 MPa	≤7%	ASTM E84 (25/50) UL 94 UL 723 AS/NZS 1530.3 EN 13501-1	3/8” Wall = R2

Elastomeric Insulation tube

Insulation   Type	Thermal   Conductivity (75°F)	Water   Vapor Permeability	Tensile   Strength	Shrinkage	Fire   Proof Rating	R   Value
Elastomeric Insulation	0.25 Btu•in/ft2•h•F (0.036W/m•K)	7.25x10-14 kg/s•m•Pa	≥0.025 MPa	≤10%	ASTM E84 (25/50) BS   476-7 (Class 1)	3/8” Wall = R2.5

Specifications

R410a & R32 Grade

size	insulation inner diameter mm	copper tube size  mm		length
		outside diameter	wall   thickness
Single   Coil 1/4”	8.0	6.35	0.8	up to   15 meters
Single   Coil 3/8”	12.0	9.52	0.8	up to   15 meters
Single   Coil 1/2”	14.0	12.7	0.8	up to   15 meters
Single   Coil 5/8”	18.0	15.88	1.0	up to   15 meters
Single   Coil 3/4”	22.0	19.05	1.14	up to   15 meters
Pair   Coil 1/4”+3/8”	8.0	6.35	0.8	up to   15 meters
	12.0	9.52	0.8
Pair   Coil 1/4”+1/2”	8.0	6.35	0.8	up to   15 meters
	14.0	12.7	0.8
Pair   Coil 1/4”+5/8”	8.0	6.35	0.8	up to   15 meters
	18.0	15.88	1.0
Pair   Coil 3/8”+5/8”	12.0	9.52	0.8	up to   15 meters
	18.0	15.88	1.0
Pair   Coil 3/8”+3/4”	12.0	9.52	0.8	up to   15 meters
	22.0	19.05	1.14
Pair   Coil 1/2”+3/4”	14.0	12.7	0.8	up to   15 meters
	22.0	19.05	1.14

 ASTM B280 Standard

size	insulation inner diameter mm	copper tube size    mm		length
		outside diameter	wall   thickness
Single   Coil 1/4”	8.0	6.35	0.76	up to   15 meters
Single   Coil 3/8”	12.0	9.52	0.81	up to   15 meters
Single   Coil 1/2”	14.0	12.7	0.81	up to   15 meters
Single   Coil 5/8”	18.0	15.88	0.89	up to   15 meters
Single   Coil 3/4”	22.0	19.05	0.89	up to   15 meters
Pair   Coil 1/4”+3/8”	8.0	6.35	0.76	up to   15 meters
	12.0	9.52	0.81
Pair   Coil 1/4”+1/2”	8.0	6.35	0.76	up to   15 meters
	14.0	12.7	0.81
Pair   Coil 1/4”+5/8”	8.0	6.35	0.76	up to   15 meters
	18.0	15.88	0.89
Pair   Coil 3/8”+5/8”	12.0	9.52	0.81	up to   15 meters
	18.0	15.88	0.89
Pair   Coil 3/8”+3/4”	12.0	9.52	0.81	up to   15 meters
	22.0	19.05	0.89
Pair   Coil 1/2”+3/4”	14.0	12.7	0.81	up to   15 meters
	22.0	19.05	0.89
